Authorization in APISIX Using Casbin

مقدمة

Apache APISIX can enforce Casbin authorization policies at the gateway with its built-in authz-casbin plugin. The plugin uses Lua Casbin and supports access control models such as ACL, RBAC, and ABAC.

This guide puts a small RBAC policy on the APISIX request path. You will verify allowed and denied requests, then update a shared policy through plugin metadata without changing the route.

The Casbin community originally proposed the integration in APISIX Issue #4674, and APISIX PR #4710 added the plugin.

August 2026 refresh

This guide was refreshed in August 2026. The examples were validated with Apache APISIX 3.17.0. The original 2021 author remains credited, and Yilia Lin is added for the 2026 refresh.

Authentication boundary

Casbin performs authorization, not authentication. The example uses a user request header as the subject only to keep the test small. In production, do not trust an identity header supplied directly by a client. An authentication layer or trusted proxy should establish the identity and remove or overwrite untrusted values before Casbin evaluates the request.

Prerequisites and starting state

This guide starts with a disposable Apache APISIX 3.17.0 instance already running. If you need a local instance, follow the APISIX Docker deployment guide and pin the APISIX image to apache/apisix:3.17.0-debian.

The instance must have:

• the data plane available at http://127.0.0.1:9080;
• the Admin API available at http://127.0.0.1:9180;
• the built-in authz-casbin and mocking plugins enabled.

You also need curl and jq. Set admin_key to the key configured for your Admin API:

export admin_key='<your-admin-api-key>'

Replace the placeholder before continuing. Confirm that the Admin API is reachable and the plugin is enabled:

curl --fail-with-body \
  "http://127.0.0.1:9180/apisix/admin/plugins/list" \
  -H "X-API-KEY: $admin_key" | \
jq -e '(["authz-casbin", "mocking"] - .) | length == 0'

The command should print true. Do not publish the Admin API to an untrusted network or reuse demonstration credentials in another environment.

Define the model and policy

The plugin evaluates three request values:

• sub: the subject from the configured request header;
• obj: the request URI path; and
• act: the HTTP method.

Create model.conf:

[request_definition]
r = sub, obj, act

[policy_definition]
p = sub, obj, act

[role_definition]
g = _, _

[policy_effect]
e = some(where (p.eft == allow))

[matchers]
m = (g(r.sub, p.sub) || keyMatch(r.sub, p.sub)) && keyMatch(r.obj, p.obj) && keyMatch(r.act, p.act)

Create policy.csv:

p, *, /anything, GET
p, admin, *, *
g, alice, admin

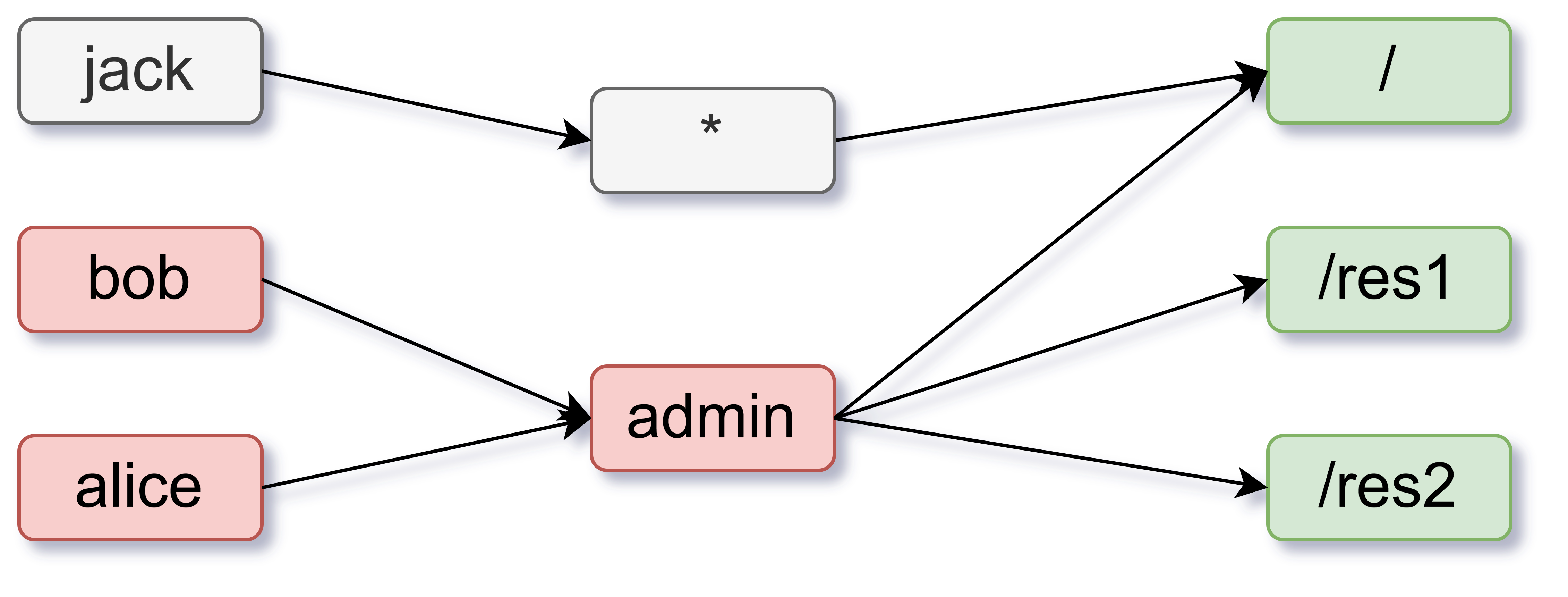

This policy allows any subject to send GET /anything. It also assigns alice the admin role, which can access every path with every method.

Store the shared policy in plugin metadata

Load the files as JSON strings and write them to APISIX plugin metadata:

jq -n \
  --rawfile model model.conf \
  --rawfile policy policy.csv \
  '{model: $model, policy: $policy}' | \
curl --fail-with-body \
  "http://127.0.0.1:9180/apisix/admin/plugin_metadata/authz-casbin" \
  -H "X-API-KEY: $admin_key" \
  -H "Content-Type: application/json" \
  -X PUT \
  --data-binary @-

Plugin metadata provides one model and policy to routes that enable authz-casbin without defining their own route-local model and policy.

Enable authorization on a route

Create a route and tell the plugin to read the subject from the user header:

curl --fail-with-body \
  "http://127.0.0.1:9180/apisix/admin/routes/casbin-demo" \
  -H "X-API-KEY: $admin_key" \
  -H "Content-Type: application/json" \
  -X PUT \
  -d '{
    "uri": "/*",
    "plugins": {
      "authz-casbin": {
        "username": "user"
      },
      "mocking": {
        "_meta": {
          "priority": 1000
        },
        "response_status": 200,
        "response_example": "{\"message\":\"authorized\"}"
      }
    },
    "upstream": {
      "type": "roundrobin",
      "nodes": {
        "127.0.0.1:1": 1
      }
    }
  }'

The route uses the model and policy from plugin metadata because it only defines the username field locally. A route-local model and policy, when configured, take precedence over plugin metadata.

The mocking plugin gives allowed requests a deterministic local response, so the example does not depend on a public upstream. Its route-local priority is lower than authz-casbin, which makes the authorization decision run first. The unreachable upstream is therefore not contacted. This priority override and mock response are test fixtures, not production recommendations.

Verify allow and deny decisions

An anonymous request to the public path is allowed:

curl -i http://127.0.0.1:9080/anything

Expected status:

HTTP/1.1 200 OK
{"message":"authorized"}

bob does not have the admin role, so a different path is denied:

curl -i http://127.0.0.1:9080/anything/res -H 'user: bob'

Expected result:

HTTP/1.1 403 Forbidden
{"message":"Access Denied"}

alice has the admin role, so the same request is allowed:

curl -i http://127.0.0.1:9080/anything/res -H 'user: alice'

Expected status:

HTTP/1.1 200 OK
{"message":"authorized"}

Update the shared policy

Add a direct permission for bob to policy.csv:

p, *, /anything, GET
p, admin, *, *
p, bob, /anything/res, GET
g, alice, admin

Run the plugin metadata command again. Routes that reference this metadata use the updated policy without changing their route configuration. Repeat the request:

curl -i http://127.0.0.1:9080/anything/res -H 'user: bob'

The expected result is now:

HTTP/1.1 200 OK
{"message":"authorized"}

Choosing the configuration scope

Use plugin metadata when several routes should share one model and policy. Use a route-local model and policy when a route needs an independent authorization shape. For the complete configuration schema and file-based alternative, see the APISIX authz-casbin plugin reference.

Clean up

Remove the test route:

curl --fail-with-body \
  "http://127.0.0.1:9180/apisix/admin/routes/casbin-demo" \
  -H "X-API-KEY: $admin_key" \
  -X DELETE

Remove the shared plugin metadata:

curl --fail-with-body \
  "http://127.0.0.1:9180/apisix/admin/plugin_metadata/authz-casbin" \
  -H "X-API-KEY: $admin_key" \
  -X DELETE
